LOWER OVERALL INVESTMENT

The 6110-MP Software Defined Radio platform is built the on latest-generation high-performance Digital Signal Processor (DSP), Field-Programmable Gate Array (FPGA) and system on chip (SoC) technology, ensures that you can get tomorrows capabilities today. The platform is fully software upgradable and is continuously supported by Codan via regular software releases. The releases add new features and system capabilities meaning that the radio product will be able to adapt to evolving user needs at minimum cost.

SECURITY OF OPERATIONS

With a range of voice and data encryption options, the security of your information on air can be guaranteed. The 6110-MP's second generation Digital Voice, including latest addition of 300 bit/s and 480 bit/s vocoder rates, coupled with AES-256 encryption provide superior and secure voice quality and data, even in the most challenging channel conditions. Codan new digital voice message capability allows you to send high quality recordings of your voice over a channel, when no other voice communication is available. The voice message is sent using 3G ALE robust data waveform and can be encrypted with AES-256.

The innovative secure interoperability capability ensures that 6110-MP systems can be configured to operate seamlessly across HF networks using disparate encryption methods, a crucial capability in complex missions. Data application suites such as Codan SprintChat and SprintNet provide peer to peer text chat, email, and file transfer as well as email and phone SMS gateways, ensuring your mission data requirements can be fully met.

REDUCED OPERATOR TRAINING

The 6110-MP front panel and optional 2320 Handset user interfaces have been designed with ruggedness, and ease of configuration and operation as primary objectives. The intuitive icon-based menu system and easy to read colour screen layout, coupled with an ability to switch between multiple native languages (including data entry modes) ensures that you can focus more on your mission and less on complex radio operations and training.

CUSTOMISABLE TO YOUR MISSION

The 6110-MP Software Defined Architecture provides a highly flexible and configurable platform enabling system administrators to tailor radio profiles to specific mission requirements. Operator access to radio configuration parameters can be easily locked down or made available, depending on your unique circumstances.

It is designed for tactical operations, providing the operator with dedicated control of radio sound and light emission via the discreet mode switch. It also provides dual handset control through the full support for H-250 audio accessories along with being fully compatible with the 2320 Smart Handset. With a built in speaker and GPS, the 2320 handset provides direct access to core operations remote from the radio, highly suited to on the move communications.

CODAN RELIABILITY AND SUPPORT

With Codan’s highly trained, globally available service and support network you always have access to prompt and accurate assistance wherever you are located. Codan products have some of the best MTBF metrics in the industry, resulting from almost 60 years of HF design experience with the Codan 6110-MP Manpack built for maximum reliability in all conditions.

THE 6110-MP HAS A RANGE OF ADVANCED CAPABILITIES FOR CUSTOMISED SOLUTIONS.

COMPACT AND LIGHTWEIGHT

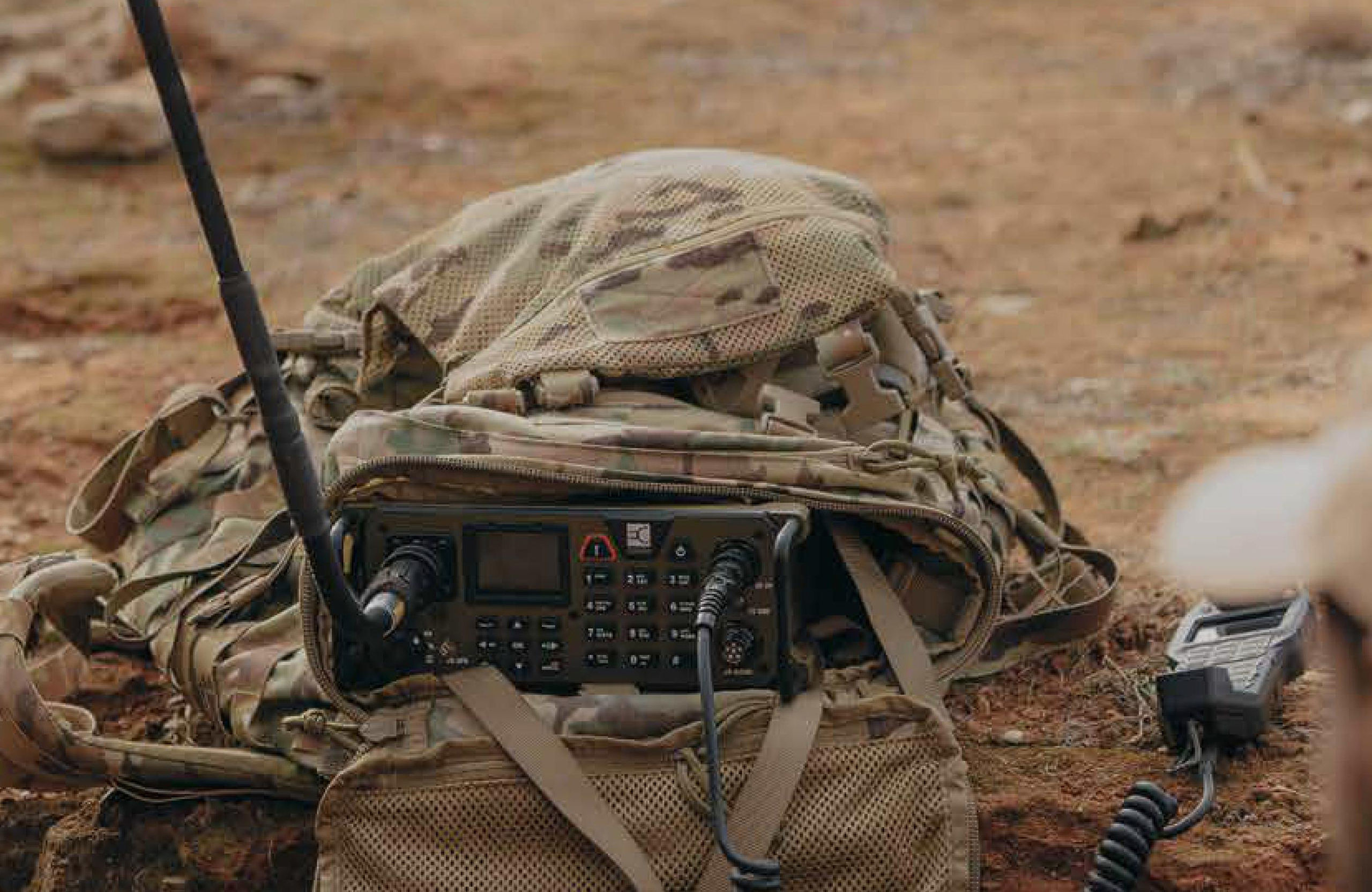

The 6110-MP sets a new standard for size and weight for HF manpack radios with ruggedness and reliability as a focus. It weighs less than 5 kg including battery, with one of the smallest form factors available.

30W HIGH POWER

The 6110-MP packs a full 30W RF power output in a high efficiency SDR platform that can deliver up to 55 hours of battery run time. With extremely clean transmit signal and industry leading receiver performance, the 6110-MP provides exceptional HF communications clarity.

LONG BATTERY LIFE

The 6110-MP's highly efficient design allows for 55 hours of operation from a single battery charge. It uses standard military off-the-shelf BB-2590 style batteries, capitalising on latest technology advances and supply flexibility.

MIL SPEC

Designed and tested to the toughest Military standards and inherits the time proven reliability of Codan.

INTUITIVE OPERATION

Codan knows that when lives are on the line, operation of the radio must be second nature. The 6110-MP provides an intuitive user interface that can be switched into various languages for fast and instinctive control.

DISCREET MODE

Designed for tactical operations, providing the operator with dedicated control of radio sound and light emission via the discreet mode switch.

SOFTWARE-DEFINED RADIO

The software-defined architecture enables you to download and upgrade new capabilities through software to ensure your investment is future-proof.

SECURE VOICE AND DATA

When coupled with AES-256 encryption, second generation Digital Voice technology and high speed MIL/STANAG data waveforms it provides superior and secure voice quality and data throughout the most challenging channel conditions.

FREQUENCY HOPPING

Frequency Hopping capability helps prevent third party monitoring of communications. Supports up to 31 user programmable hop plans and can be combined with voice encryption to provide a high level of ECCM and communications security.

DATA

Data application suites such as Codan SprintChat and SprintNetprovide broadcast and peer to peer text chat, email, and file transfer as well as email and phone SMS gateways, ensuring your mission data requirements can be fully met.

3G ALE

3G ALE provides quick linking and secure data exchange. A fully encrypted long-range solution for tactical data communications, optimised to perform in low signal to noise environments when 2G ALE fails.

EMBEDDED GPS

Both the 6110-MP and 2320 Handset have built in GPS receivers, ensuring that waveform synchronisation and position reporting is available with the added complexity and potential failure of externally connected GPS devices.

SMART HANDSET CONTROL

The Sentry Handset provides an intuitive user interface and easy to read layout, coupled with an ability to switch between multiple native languages.

MULTI-LANGUAGE SUPPORT

Truly customisable communications solution, with the ability to support an unlimited number of additional languages. Supports: English, Spanish, Russian, Chinese, French, Arabic, Dari, Pashto and Portuguese.
